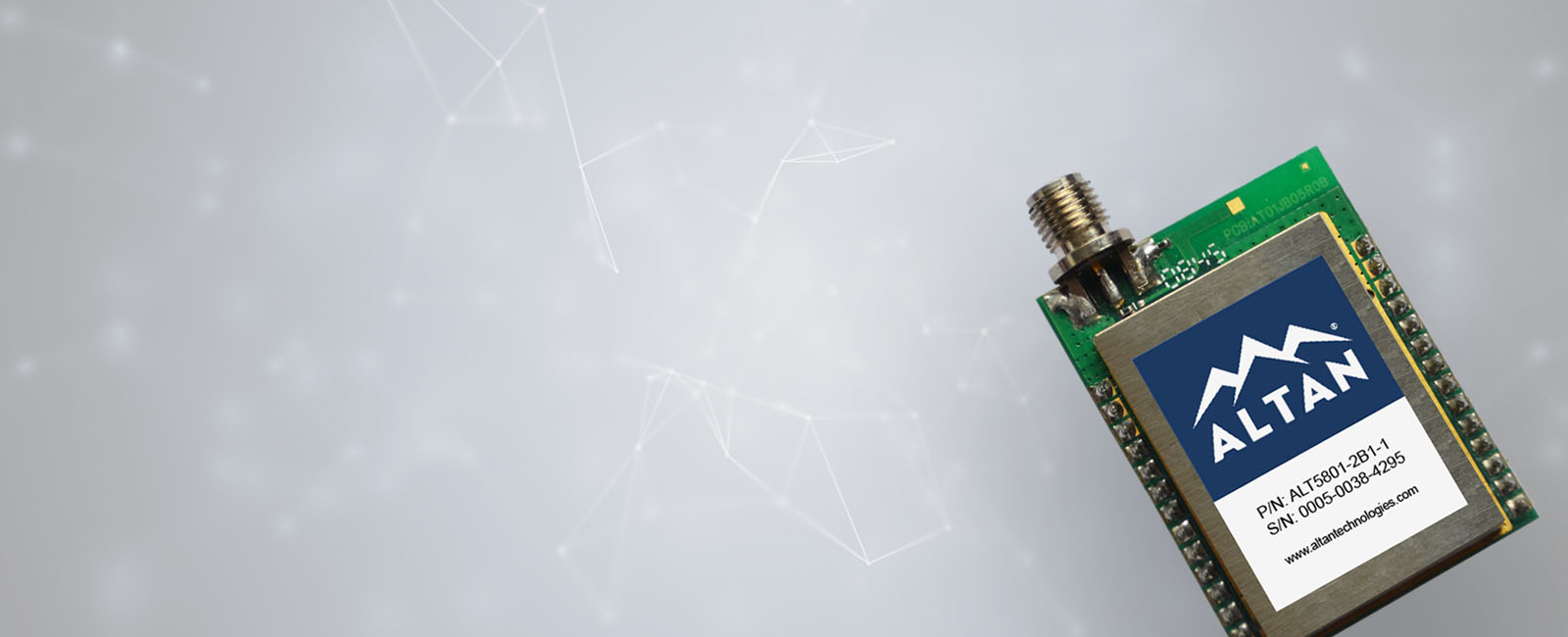

ALT5801 (Active)
5.8 GHz +20 dBm 802.15.4 Transceiver Module
The ALT5801 is a compact 5.8 GHz ISM band wireless transceiver module with +20 dBm transmit power, implementing the full ZigBee / IEEE 802.15.4 feature set. It is designed for OEMs who wish to quickly and easily add a robust 5.8 GHz wireless link to their product, leveraging rich networking functionality for implementing products such as Internet of Things devices for IoT platforms.
The key advantage of the ALT5801 is that it utilizes the license-free 5.8 GHz ISM band, enhancing wireless link reliability by avoiding crowding and unique sources of interference present in 915 MHz and 2.45 GHz ISM bands.
The ALT5801 can be used in electronic product development for implementing embedded systems solutions such as Industrial Internet of Things devices, where the reliability of the 5.8 GHz ISM band is crucial.
Product Datasheet
Features
- 5.8 GHz ISM Band Operation
- +20 dBm or +3 dBm Transmit Power
- Mesh Network Topology
- O-QPSK, DSSS Modulation
- 32 Radio Channels
- 250 kbps Data Rate
- Range Up To 2700 ft
- Sleep Current < 3 µA
- Compact Size
- Network Security
- Multiple Antenna Options
- Supports Texas Instruments Z-Stack™, SimpleAPI™
- I/O Control and ADC Measurement
- Application Customization Available
Applications
- IoT (Internet of Things) Devices
- Robotics
- Telemetry
- Embedded Systems Solutions
- Home, Building Automation
- Security and Access
- Remote Monitoring
- Asset Management
Markets
- Aerospace and Defense Industry
- Oil and Gas Industry
- Mining Industry
- Utilities Industry
- Telecommunication Industry
- Industrial Sector
- Consumer Electronics
Tools and Software
Altan provides development tools and software for the ALT5801, streamlining evaluation and integration.
Tools include 3 evaluation modules and a packet sniffer:
ALT5801-EM-MSP430-1
- Stand alone, based on Texas Instruments MSP430 microcontroller
ALT5801-EM-USB-1
- USB interface
ALT5801-EM-RS232-1
- RS-232 interface
ALT5801-DK-SNIFFER-1
- For analysis of ALT5801 wireless communications traffic
